Thermal Insulation
Panels

These materials often feature low thermal conductivity, effectively trapping heat or cold within a confined area.

WAYNERR® is produced from leather side products – this way the uncompostable material is now possible to give the second live, reduce waste and CO2 emissions globally.

These panels are widely used in construction for walls, roofs, and floors due to their excellent thermal performance, lightweight nature, and ease of installation. They offer superior energy efficiency, helping to maintain stable indoor temperatures and reduce heating and cooling costs.

Thermal insulation panels come in 40×60 cm size and 2 cm thickness to suit building requirements. They are commonly used in residential, commercial, and industrial buildings, as well as in cold storage facilities and refrigerated transportation.

Other characteristics

Modern ecological materials, safe for environment and humans

Premium Class material with low thermal conductivity

Material is 100% recycled & recyclable

Up to A2 class reaction to fire

Properties

Available
in Hydrophobic
Coating

Extremely
Low Thermal
Conductivity

Absorption
for Oleophilic
Liquids

Mechanical
strength

Fire
Resistance

Sound
absorption

Thermal Insulation Panels

PARAMETER
STANDARTS
WA-TN-SA80
WA-TN-PO03
MINERAL FILLER
Quartz Type Sand
Recycled Glass 1-3 mm
PANEL THICKNESS
15 mm
15 mm
SURFACE DENSITY
Internal testing
200 kg/m3
150 kg/m3
WEIGHT, per 1 m2
Internal testing
2.0 kg
1.5 kg
COMPRESSION PRESSURE
MEASUREMENTS
Internal testing
198.69 kPa
244.56 kPa
TENSILE-STRENGTH
MEASUREMENTS
Internal testing
76.76 kPa
68.56 kPa
THERMAL CONDUCTIVITY, λ
EN ISO 10456:2008
0.049
0.044
CLASSIFICATION OF REACTION
TO FIRE PERFORMANCE
NF EN ISO 1716: 2018
NF EN 13501-1: 2018
NF EN 13823+A1: 2022
A2 (s1,d0)
B (s2,d0)
SOUND ABSORBTION
BS EN ISO 354:2003
BS EN ISO 11654: 1997
ASTM C 423- 01
αw 0.45 MH
Class D
NRC 0.60
αw 0.50 MH
Class D
NRC 0.65
SOUND REDUCTION
(Improvement on Basic Wall, Rw)
BS EN ISO 10140-2: 2021
3 dB
2 dB
SACCELERATED AGING TEST (HALT)
UNI EN ISO 17228: 2015
Passed
Pending

SUSTAINABLE
We are transforming leather side products into valuable, high-quality and eco-friendly insulation materia.

100% NATURAL
Made from natural materials
that can be recycled.

FIRE RESISTANCE
Up to A class reaction to fire:
it is made of material
which pronounces safety.

LOW PROFILE
We elevate your spaces
without compromise.

SUSTAINABLE
We are transforming leather side products into valuable, high-quality and eco-friendly insulation materia.

100% NATURAL
Made from natural materials
that can be recycled.

FIRE RESISTANCE
Up to A class reaction to fire:
it is made of material
which pronounces safety.

LOW PROFILE
We elevate your spaces
without compromise.

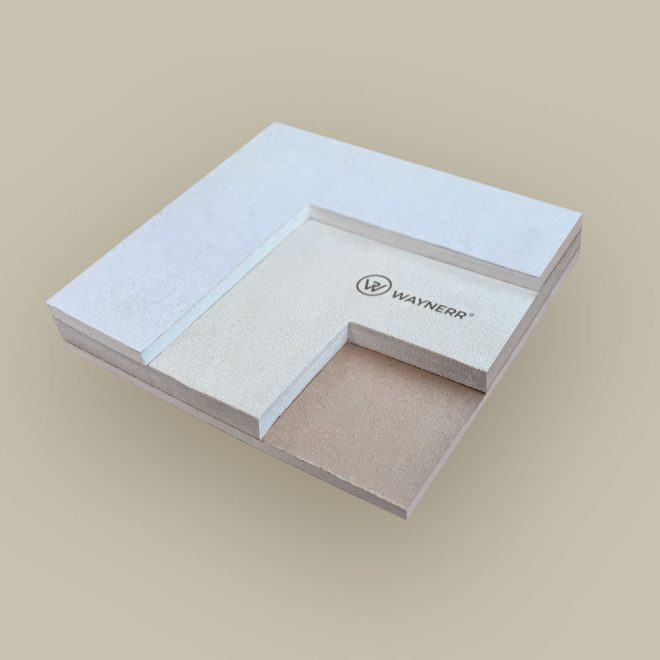

waynerr_unique_properties-2

LIGHTWEIGHT
Lightweight material:
removes unnecessary weight
from the structures.

SOUNDPROOF
WAYNERR® panels offer outstanding sound absorption and sound reduction.

CERTIFIED

EPD PENDING
EPD certification pending: impressive LCA results.

Thermo insulation

WAYNERR® panels has more than 90% porosity and has very high thermal insulation characteristics, not inferior to the leading thermally insulating polymer and ceramic materials.

Noise insulation

WAYNERR® panels has a quality that prevents sound from escaping a medium, most especially enclosed.

Microclimate effect

WAYNERR® panels has ability to absorb and dispatch ambient moisture. Helps in regulating daily temperature and humidity changes by maintaining comfortable microclimate.

Water adsorption / desorption up to 1200 % of material weight.
Water vapour absorption 13 mg/cm2 Water vapor permeability 5-8 mg/(cm2·hour)..

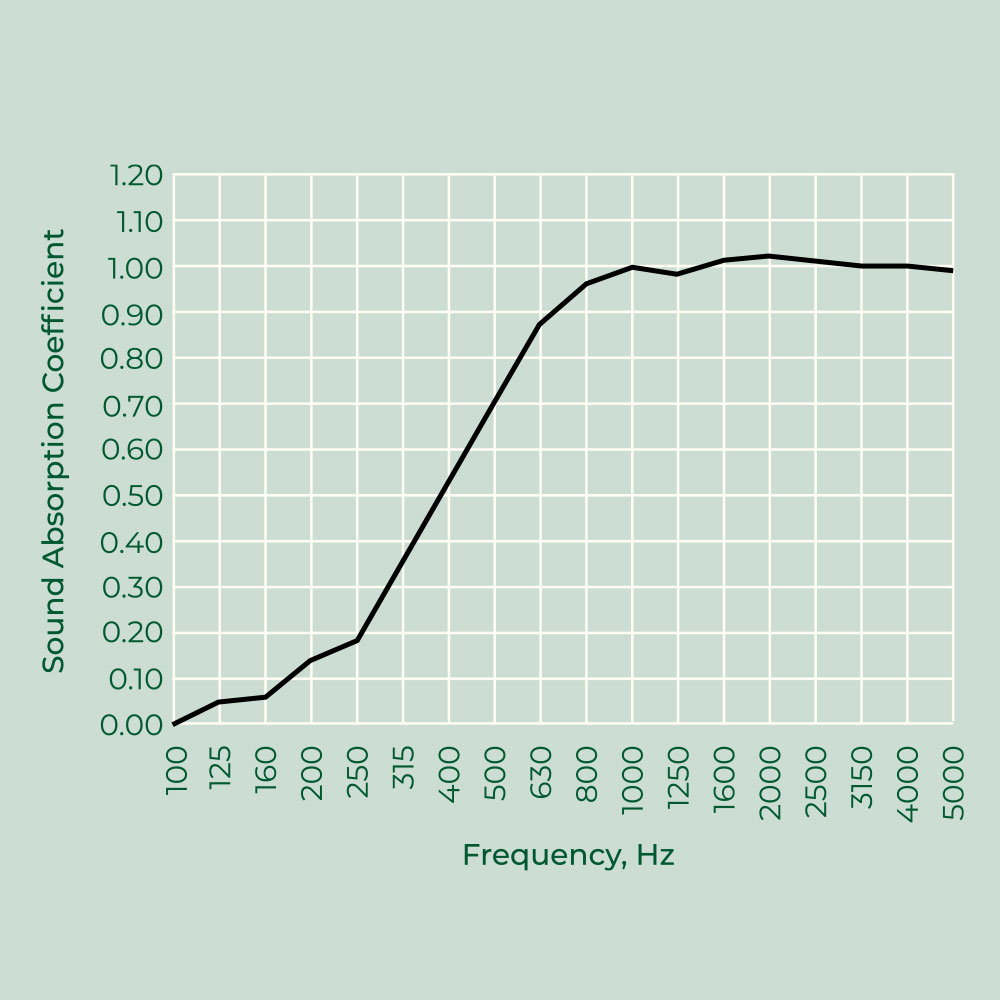

ACOUSTIC PROPERTIES

INTERIOR PANEL
(W/O FILLER)

sound_absorption_table_01
SKU: WA-ID
Class D, αw = 0.5 (MH), NRC = 0.70
WAYNERR® thermal-sound insulation panel PS700-65,
2 cm thickness.
With / without texture
With / without color
Thickness from 15 mm

THERMAL-NOISE PANEL
WITH SAND

sound_absorption_table_02
SKU: WA-TN-SA80
Class D, αw = 0.45 (MH), NRC = 0.60
WAYNERR® thermal-sound insulation panel SA80,
1.5 cm thickness.
Without texture / color
Thickness from 15 mm

THERMAL-NOISE PANEL WITH
RECYCLED GLASS

sound_absorption_table_03
SKU: WA-TN-P003
Class D, αw = 0.5 (MH), NRC = 0.65

Without texture / color
Thickness from 15 mm

INTERIOR +
SAND PANEL

INTERIOR + SAND PANEL​
SKU: WA-AC-SAID
Class A, αw = 1.0 (MH), NRC = 0.95

Without texture / color
Thickness from 35 mm

2 LAYERS OF
SAND PANELS

2 LAYERS OF SAND PANELS​
SKU: WA-AC-2SA
Class A, αw = 0.9 (MH), NRC = 0.9

Without texture / color
Thickness from 30 mm

2 LAYERS OF RECYCLED
GLASS PANELS

2 LAYERS OF RECYCLED GLASS PANELS​
SKU: WA-AC-2PO
Class A, αw = 1.0 (MH), NRC = 0.95

Without texture / color
Thickness from 35 mm
